Components and graphic details may differ from the actual model.
XR24 | 24'' DISC | TOURNEY 8SPYTB7R
XR24 24” DISC
Recommended Retail Price
€ 570
Hai bisogno di aiuto?
Manutenzione
Scopri come prenderti cura del prodotto
Manuali
Tutto ciò che devi sapere sulla tua bici
Garanzia convenzionale standard
Scopri i termini e le condizioni
Garanzia a vita
Scopri tutti i dettagli sui termini e le condizioni della garanzia convenzionale a vita
Frame
Frame kit
Bianchi XR24, Aluminium, Disc Brake, for 24″ wheels sizes 33
Fork
Zoom Suspended fork for 24″, 50mm travel
Headset
NECO Headset for 1-1/8″
Drivetrain
Shifters
Shimano SL-M315, Tourney 8sp
Crankset
32T, lenght 152mm
Rear Derailleur
Shimano RD-TY800, Tourney 8sp
Cassette
Shimano CS-HG31, 8sp, 11-13-15-17-20-23-26-
30T
Chain
KMC 8sp
Brakes
Brakes
Shimano BR-TX80 mechanical disc brake, Tourney
Rotor
Shimano SM-RT10, 160 mm
Brake lever
Shimano BL-T4000 for mechanical disc brake
Cockpit
Stem
Bianchi Stem alloy, lenght 50mm
Handlebar
Bianchi Width 580mm, barebore 25.4mm, rise 16mm, backsweep 9°
Grips / Extensions
Bianchi Rubber grips
Wheels
Wheels
Mach1 ER20 24″, 32 holes
Tire
Rubena Ocelot, 24×2.1″, 54-507
Saddle
Seatpost
SP-7019, 27.2mm, 0mm seatback
Saddle
DDK Memory foam saddle

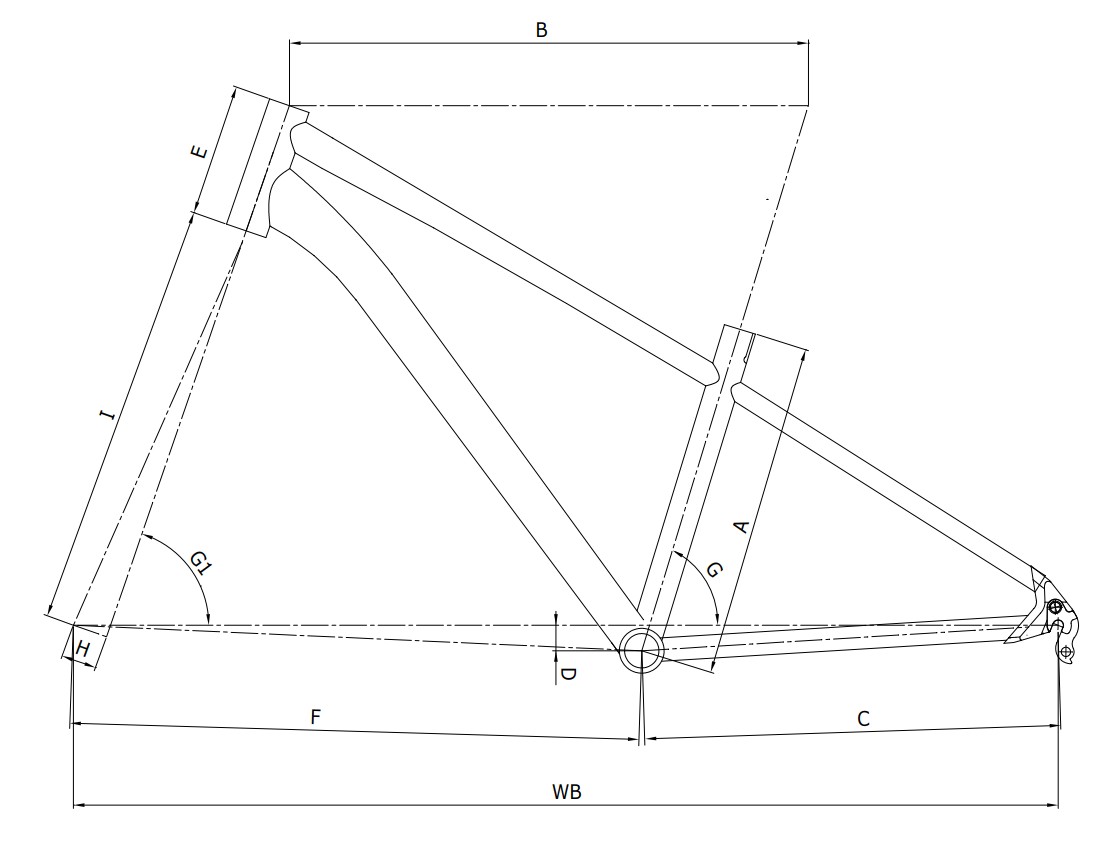

| SIZE | A | B | C | D | E | F | G | G1 | H | I | X | Y | WB |
| 24” | 330 | 510 | 410 | 25 | 130 | 559 | 73° | 71° | 34.5 | 410 | / | / | 968 |
Based on component availability, Bianchi reserves the right to make changes on specifications without notice.
| color | 7U – CK16 / Silver Graphite, 7X – Acid Yellow Full Glossy, 8A – Carina / Silver Full Glossy |
|---|
